Porsche 356B/C T5/T6 Right-Hand Drive Parts
Changing Porsche 356 from Left-Hand Drive to Right-Hand Drive
By Brian Doody
Basically parts needed are:
- RHD pedal box assembly + under floor horseshoe shaped bracket
- RHD dash (or cut and shut LHD dash)
- T5 fuel tank (if converting BT6) or Later 'C' RHD tank
- T5 hood Floor (if converting T6)
- RHD steering box or RHD Pitman Arm
- Floorboards for RHD (can be DIY'ed)
RHD pedal Box is easy to fit - The cables don't have to be moved as they are pulled from the same locations as the LHD car. Porsche used extended levers for Clutch and Accelerator for RHD ( the early 911 (all 911's?) also does this for RHD).
Theres a second bracket for RHD which sits on the LH of the tunnel and supports the extended levers .
The brake MC needs a new hole cut for it and the old one blanked, the RH floorboard mount has the location holes for RHD already present.
The dash is a simple change.
The handbrake must reversed to pull from the RH - ie cutting/rewelding + needs some bracket work on the torsion bar.
The Steering box is moved to the RH and a relief must be fabricated in the nose space (same as on the LH.)
A T5 will be much simpler to do than the T6 as there is no fuel tank work involved.
Theres lots of small changes needed to make things fit which must be figured out as you go along. (eg. Window washer pump needs relocation).
It's definitely not a job to attempt if you are not comfortable with Welding/Fabricating/General-Mechanical stuff and have a good understanding of all the parts of a car and how they work.
(From a 356Talk posting on 2005-03-22)
Parts variations
The following is a list of parts which are different between LHD and RHD cars. It is not complete, in particular the various components of the fuel tank are not listed separately. I have also omitted unusual options and all parts for the Carrera.

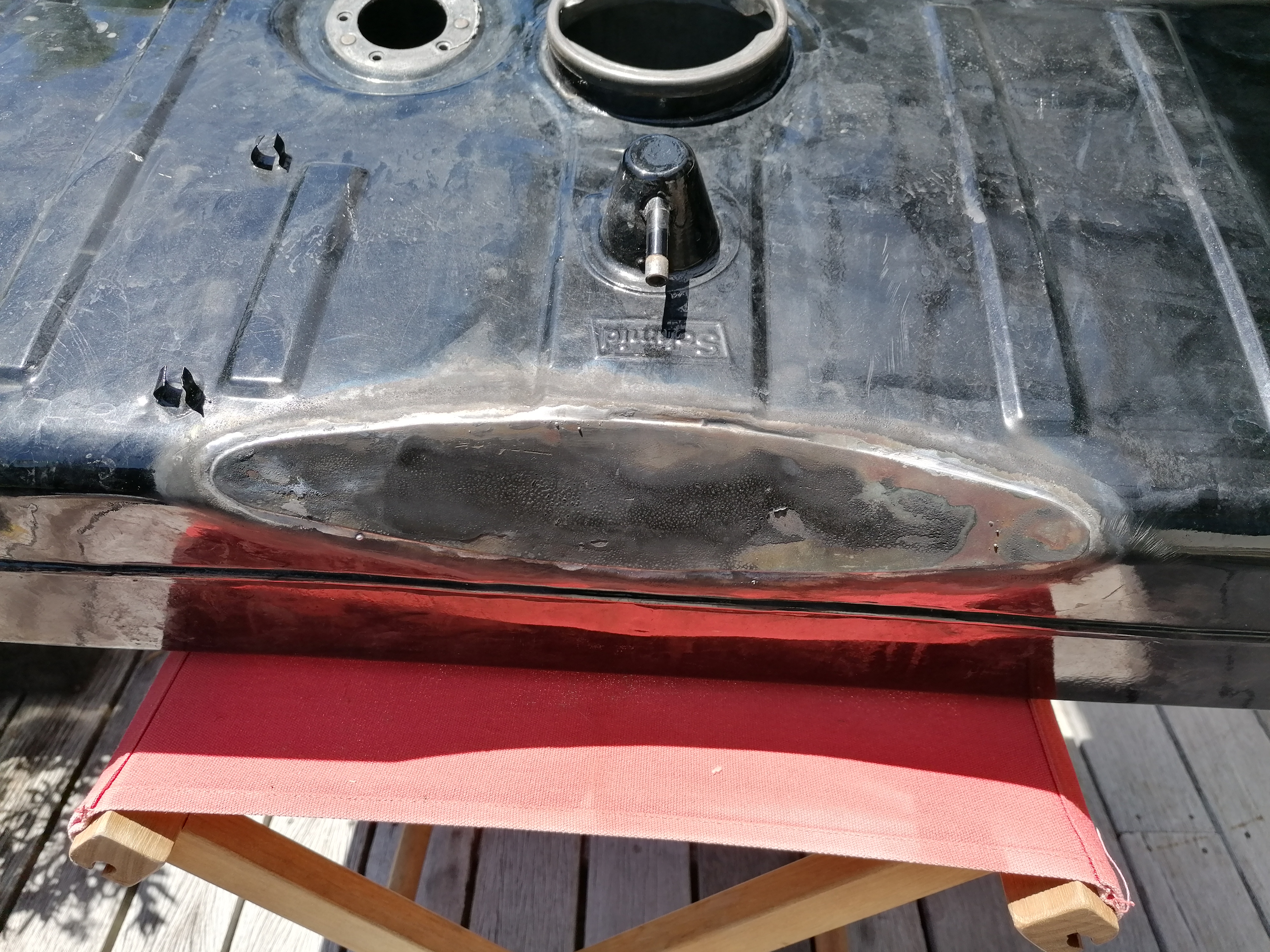

Note: If fitting to a T6, the T5 fuel tank needs to be modified to clear the air intake below the windscreen. This is how the factory did it:
Abbreviations
- NA Not applicable to this model
- NAv Not available for this model
- ⇐ Refer to the previous model (e.g. C LHD should use BT6 LHD)
- * Note that this part is used on the other side for LHD
Back to Lawrence's Porsche page
Description | Page/Item | BT5 LHD | BT5 RHD | BT6 LHD | BT6 RHD | C LHD | C RHD |
---|---|---|---|---|---|---|---|
Fuel tank (old) | 201-00/1 | 644 201 001 08 | NA | ⇐ (modified) | NA | ⇐? | |
Fuel tank (lower sender) | 201-05/1 | NA | 644 201 001 06 | NA | ⇐ | NA | |
Fuel tank (upper sender) | 201-05/1 | NA | 644 201 001 07 | NA | ⇐ | NA | |
Fuel tank (70l) | NA | 644 201 001 20 | NA | ⇐ | NA | ||
Fuel tank (new RHD) | 201-05/1 | NA | NA | NA | NA |
644 201 010 08? 644 201 010 09? |
|
Fuel cock | 644 201 021 00 | 644 201 021 07 | ⇐ | ⇐ | 644 201 021 00 | ||
Fuel cock operating rod | 644 201 241 00 | 644 201 241 06 | ⇐ | ⇐ | 644 201 241 09 | ||
Steering idler arm | 403-00/1 | 644 347 301 02 | 644 347 302 02 | ⇐ | ⇐ | ⇐ | ⇐ |
Steering tierod L | 403-00/2 | 644 347 311 01 | 644 347 313 01 | ⇐ | ⇐ | ⇐ | ⇐ |
Steering tierod R | 403-00/3 | 644 347 312 01 | 644 347 314 01 | ⇐ | ⇐ | ⇐ | ⇐ |
Balljoint L outer | 403-00/4 | 644 347 325 02 | 644 347 324 02 | ⇐ | ⇐ | ⇐ | ⇐ |
Balljoint L inner | 403-00/5 | 644 347 321 02 | 644 347 323 02 | ⇐ | ⇐ | ⇐ | ⇐ |
Balljoint R outer | 403-00/6 | 644 347 326 02 | 644 347 325 02 * | ⇐ | ⇐ | ⇐ | ⇐ |
Balljoint R inner | 403-00/7 | 644 347 322 02 | 644 347 321 02 * | ⇐ | ⇐ | ⇐ | ⇐ |
Steering col tube | 403-00/28 | 644 347 007 05 | 644 347 009 05 | ⇐ | ⇐ | 644 347 009 06 | |
Steering col tube (extended) |
403-00/28 |
644 347 008 05 (Opt, 30mm) |
NAv | ⇐ | NAv | NA | |
Steering col ext screw | 403-05/7 | 644 347 765 05 (Opt) | NAv | ⇐ | ⇐ | ⇐ | ⇐ |
Ring for steering col ext | 403-05/16 | 644 347 758 05 (Opt) | NAv | ⇐ | ⇐ | ⇐ | ⇐ |
Steering coupling | 403-10/36 | 644 347 020 00 | ⇐ | ⇐ |
695 347 020 00 695 347 020 01 (Opt) |
695 347 020 01 | |
Ground strap | 403-10/41 | 356 47 104 | ? | ⇐ | ⇐ |
356 47 104 644 47 104 695 347 104 06 (Opt) |
695 347 104 06 |
Cheese-head screw | 403-10/43 | ⇐ | ⇐ | ⇐ | ⇐ | 999 067 004 02 x 4 | 999 067 004 02 x 2 |
Bolt for col ext | 403-10/44 | 356 47 105 | ⇐ | ⇐ |
356 47 105 999 067 005 02 (Opt) |
999 067 005 002 | |
Brake pipe | 604-10/4 | ⇐ | ⇐ | ⇐ | ⇐ | 695 355 643 00 | 695 355 644 00 |
Brake line FL | 604-10/8 | 644 42 313 | 644 42 317 | ⇐ | ⇐ | 695 355 313 00 | |
Brake line FR | 604-10/9 | 644 42 314 | 644 42 318 | ⇐ | ⇐ | ⇐ | ⇐ |
Brake line to rear | 604-10/12 | 695 352 602 01 | 695 352 604 01 | ⇐ | ⇐ | ⇐ | ⇐ |
Gear lever | 701-00/1 |
695 424 011 02 695 424 011 03 |
695 424 012 00 |
695 424 011 06 695 424 011 05 |
695 424 012 02 695 424 012 03 |
⇐ | ⇐ |
Gear lever | 701-05/1 | ⇐ | ⇐ | ⇐ | ⇐ | 695 424 011 06 | 695 424 012 03 |
Lever | 701-05/4 | NA | NA | NA | NA | 695 424 721 05 | 695 424 721 06 |
Handbrake cable, complete | 701-20/1 | 644 24 023 | 644 24 024 | ⇐ | ⇐ | 695 424 017 01 | 695 424 018 01 |
Handbrake cable | 701-20/2 | 644 24 025 | 644 24 026 | ⇐ | ⇐ | 695 424 059 00 | 695 424 060 00 |
Intermediate piece | 701-20/? | 644 501 921 00 | NA | ⇐ | ⇐ | ⇐ | ⇐ |
Handbrake guide tube | 701-20/5 | 644 24 027 | ⇐ | ⇐ | 695 424 019 00 | 695 424 026 00 | |
Locking segment | 701-20/9 | 644 24 231 | 644 24 232 | ⇐ | ⇐ | ⇐ | ⇐ |
Lever | 701-20/19 | 695 424 057 00 | 695 424 058 00 | ⇐ | ⇐ | ⇐ | ⇐ |
Bearing bracket | 701-20/21 | 644 24 021 | 644 24 021 1 | ⇐ | ⇐ | ⇐ | ⇐ |
Thottle pushrod | 702-00/19 | 644 23 016 | 644 23 134 | ⇐ | ⇐ | ⇐ | ⇐ |
Lever | 702-00/24 | NA | 356 23 070 | NA | ⇐ | NA | ⇐ |
Shaft | 702-00/25 | NA | 644 23 137 | NA | ⇐ | NA | ⇐ |
Support | 702-00/26 | NA | 644 23 139 | NA | ⇐ | NA | ⇐ |
Bolt, M6x12 | 702-00/27 | NA | 900 075 010 01 | NA | ⇐ | NA | ⇐ |
Spring washer B6 | 702-00/28 | NA | N 012 226 5 | NA | ⇐ | NA | ⇐ |
Washer | 702-00/29 | NA | 911 423 225 00 | NA | ⇐ | NA | ⇐ |
Spring washer B6 | 702-00/30 | NA | N 012 226 5 | NA | ⇐ | NA | ⇐ |
Hex nut M6 | 702-00/31 | NA | 900 076 010 01 | NA | ⇐ | NA | ⇐ |
Pullrod | 702-00/32 | NA | 644 23 142 | NA | ⇐ | NA | ⇐ |
Bracket | 702-00/40 | 644 23 033 | NA | ⇐ | NA | ⇐ | NA |
Bush | 702-00/? | 644 423 556 00 x 2 | 644 423 556 00 x 1 | ⇐ | ⇐ | ⇐ | ⇐ |
Bracket | 702-00/41 | NA | 644 23 035 | ⇐ | ⇐ | ⇐ | ⇐ |
Clutch pedal shaft | 702-00/43 | 644 23 022 | 644 23 221 | 695 423 043 00 | 695 423 044 00 | ⇐ | ⇐ |
Bracket | 702-00/53 | NA | 644 23 225 | ⇐ | ⇐ | ⇐ | ⇐ |
Bush | 702-00/54 | NA | 644 423 556 00 | ⇐ | ⇐ | ⇐ | ⇐ |
Washer | 702-00/55 | NA | 900 025 007 01 | ⇐ | ⇐ | ⇐ | ⇐ |
Lockring B8 | 702-00/56 | NA | 900 027 015 01 | ⇐ | ⇐ | ⇐ | ⇐ |
Hex nut M8 | 702-00/57 | NA | 900 076 025 02 | ⇐ | ⇐ | ⇐ | ⇐ |
Accel cable | 702-00/ | NA | NA | 695 424 361 00 | 695 424 362 00 | ⇐ | ⇐ |
Accel cable guide tube | 702-00/ | NA | NA | 695 424 331 00 | 695 424 332 00 | ⇐ | ⇐ |
Chassis front-end w/ cross-panel | 801-05/1 | 644 501 005 05 | 644 501 005 06 | 644 501 005 07 | 644 501 005 08 | ⇐ | 644 501 005 09 |
Cross panel | 801-05/? | ⇐ | ⇐ | ⇐ | ⇐ | ⇐ | 644 501 041 09 |
Chassis front-end w/o cross-panel | 801-05/2 | 644 501 006 05 | 644 501 006 06 | 644 501 006 07 | 644 501 006 08 | ⇐ | 644 501 006 08 |
Cross-member | 801-05/3 | 644 501 030 05 | 644 501 030 06 | 644 501 030 07 | 644 501 030 08 | ⇐ | ⇐ |
Fender strut FL | 801-05/4 | 644 501 095 05 | 644 501 095 05 | 644 501 095 06 |
644 501 095 06 644 501 095 08 |
644 501 095 06 |
644 501 095 06 644 501 095 08 |
Tank comp. Floor | 801-05/32 | 644 501 035 05 | 644 501 035 06 | 644 501 035 07 | 644 501 035 08 |
644 501 035 07 644 501 035 09? |
644 501 035 09 |
Tank comp. Floor (80l) | 801-05/32 | 644 501 035 50 | 644 501 036 50 | ⇐ | ⇐ | ⇐ | ⇐ |
Cover | 801-05/34 | 644 504 501 01 | 644 504 501 02 | 644 504 501 03 | ⇐ | ⇐ | 644 504 051 09 |
Cover (80l) | 801-05/34 | 644 504 051 50 | 644 504 052 50 | ⇐ | ⇐ | ⇐ | ⇐ |
Cover | 801-05/? | NA | NA | NA | 644 504 503 50 | NA | 644 504 503 09 |
Seal | 801-05/37 | 644 504 922 00 | 644 504 922 00 | ⇐ | ⇐ | ⇐ | 644 504 922 09 |
Plate | 801-05/38 | NA | 644 201 251 08 | NA | ⇐ | NA | ⇐ |
Bulkhead | 801-10/8 | 644 501 032 00 | 644 501 032 04 | NA | NA | NA | NA |
Cover, R | 801-10/10 | 644 504 521 10 | 644 504 522 10 | NA | NA | NA | NA |
Side panel | 801-10/14 |
644 501 033 06 644 501 034 06 |
644 501 033 08 | NA | NA | NA | NA |
Bulkhead | 801-10/15 | NA | NA | 644 501 032 06 | 644 501 032 08 | ⇐ | ⇐ |
Floor | 801-10/16 | NA | NA | 644 501 037 06 | 644 502 037 08 | ⇐ | 644 501 037 06 |
Cross-member | 801-10/25 | NA | NA | 644 341 010 01 | 644 344 011 02 | ⇐ | ⇐ |
Cross-member | 801-10/26 | 644 501 441 00 | 644 501 441 06 | 644 501 442 06 | ⇐ | ⇐ | |
Pedal floor | 801-10/29 | 644 501 041 05 | 644 501 041 06 | 644 501 041 07 | 644 501 041 08 | ⇐ | ⇐ |
Trunk panelling | 801-15/1 | 644 502 010 05 | 644 502 010 06 | 644 502 010 08 | ⇐ | 644 502 010 09 | |
Trunk panelling | 801-15/2 | 644 502 011 05 | 644 502 011 06 | 644 502 011 08 | ⇐ | ⇐ | |
Trunk panelling | 801-15/3 | 644 502 101 05 | 644 502 101 06 | ? | ⇐ | ? | |
Trunk panelling, L | 801-15/4 | 644 502 103 05 | 644 502 103 06 | ? | ⇐ | ? | |
Trunk panelling, R | 801-15/4 | 644 502 104 05 | 644 502 104 06 | 644 502 104 08 | ⇐ | ⇐? | |
Trunk panelling | 801-15/5 | 644 502 015 20 | 644 502 015 06 | 644 502 015 08 | ⇐ | ⇐ | |
Dashboard | 801-15/17 | 644 502 021 05 | 644 502 022 05 | 644 502 021 07 | 644 502 022 07 | 644 502 021 08 | 644 502 022 08 |
Front fender, R | 802-00/4 | PCG 503 034 05 | PCG 503 034 06 | PCG 503 034 08 | ⇐ | ⇐ | |
Trunk mat | 807-00/1 | 644 551 103 00 | 644 551 103 06 | ⇐ | ⇐ | ⇐ | |
Front floor mat | 807-00/20 | 644 551 101 05 | 644 551 102 05 | 644 551 101 06 | 644 551 102 06 | ⇐ | ⇐ |
Pedal floorboard, R | 807-00/24 | 644 551 064 05 | 644 551 066 05 | 644 551 064 06 | ⇐ | ⇐ | ⇐ |
Pedal floorboard, L | 807-00/24 | 644 551 063 05 | 644 551 065 05 | 644 551 063 06 | ⇐ | ⇐ | ⇐ |
Sound absorber | 807-25/2 | NA | 644 556 151 06 | 644 556 151 38 | ⇐ | ⇐ | |
Sound absorber | 807-25/3 | NA | 644 556 101 06 | 644 556 101 38 | ⇐ | ⇐ | |
Sound absorber | 807-25/4 | NA | 644 556 115 36 | 644 556 115 38 | ⇐ | ⇐ | |
Sound absorber | 807-25/5 | NA |
644 556 201 06 644 556 201 36(K) |
644 556 201 08 644 556 201 38(K) |
⇐ | ⇐ | |
Sound absorber | 807-25/6 | NA |
644 556 202 06 644 556 202 36(K) |
644 556 202 08 644 556 202 38(K) |
⇐ | ⇐ | |
Front Seat, L, Leatherette, with lock | 808-00/1 | NA | 644 521 001 03 | 644 521 001 06 | NA | 644 521 001 08 | |
Front Seat, L, Leatherette, no lock | 808-00/1 | 644 521 001 01 | NA | NA | 644 521 001 07 | NA | |
Front Seat, R, Leatherette, with lock | 808-00/1 | NA | 644 521 002 06 | NA | 644 521 002 07 | NA | |
Front Seat, R, Leatherette, no lock | 808-00/1 | 644 521 002 01 | NA | 644 521 002 03 | NA | 644 521 002 08 | |
Front Seat, L, Leather, with lock | 808-00/1 | ? | NA | 644 521 002 24 | NA | ⇐ | |
Front Seat, L, Leather, no lock | 808-00/1 | ? | 644 521 001 14 | NA | ⇐ | NA | |
Front Seat, R, Leather, with lock | 808-00/1 | ? | 644 521 002 14 | NA | ⇐ | NA | |
Front Seat, R, Leather, no lock | 808-00/1 | ? | NA | 644 521 002 24 | NA | ⇐ | |
Seat recliner, L (RHD has lock) | 808-10/20 | NA | 644 521 071 03 | 644 521 071 06 | ⇐ | ⇐ | |
Seat recliner, R (LHD has lock) | 808-10/20 | NA | 644 521 072 06 | 644 521 072 03 | ⇐ | ⇐ | |
Dash handle | 809-00/21 | NA | 644 552 865 00 | 644 552 865 01 | ⇐ | ⇐ | |
Washer 6.4 for dash handle | 809-00/21 | NA | NA | 900 025 004 02 | NA | ⇐ | |
Spring washer B6 for dash handle | 809-00/21 | NA | NA | 900 028 008 01 | NA | ⇐ | |
Nut M6 for dash handle | 809-00/21 | NA | NA | 900 076 010 02 | NA | ⇐ | |
Sun visor, R | 809-00/54 | NA | 644 731 301 06 | 644 731 302 07 | ⇐ | ⇐ | |
Sun visor, L | 809-00/55 | NA | 644 731 301 06 | 644 731 301 07 | ⇐ | ⇐ | |
Sun visor screws (4) | 809-00/57 | NA | 900 145 013 02 | 900 145 003 02 | ⇐ | ⇐ |

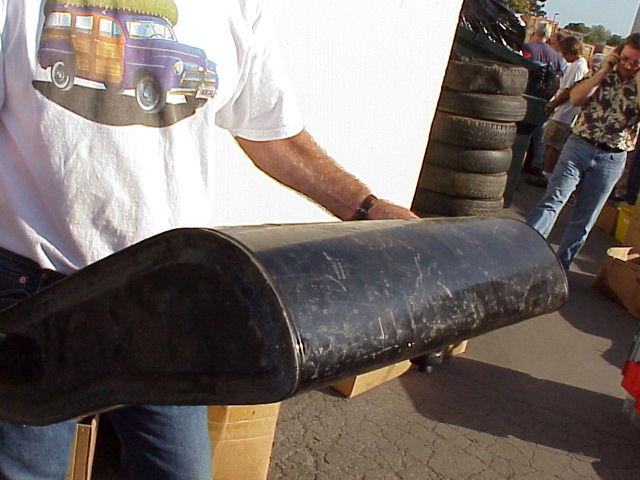

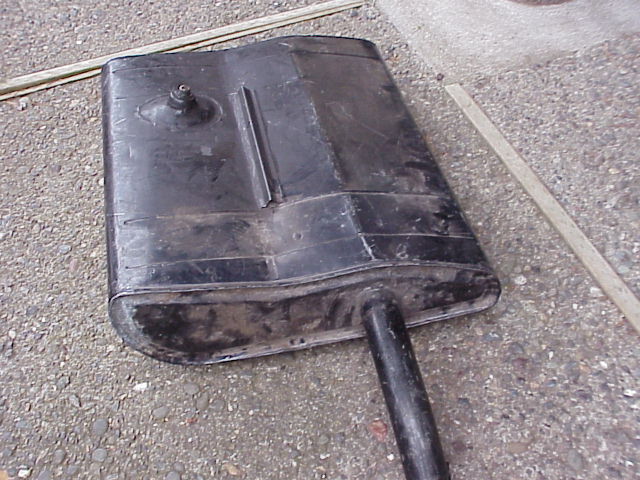

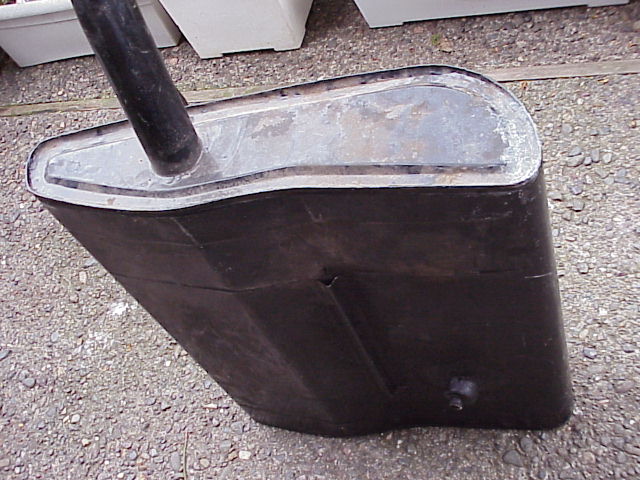

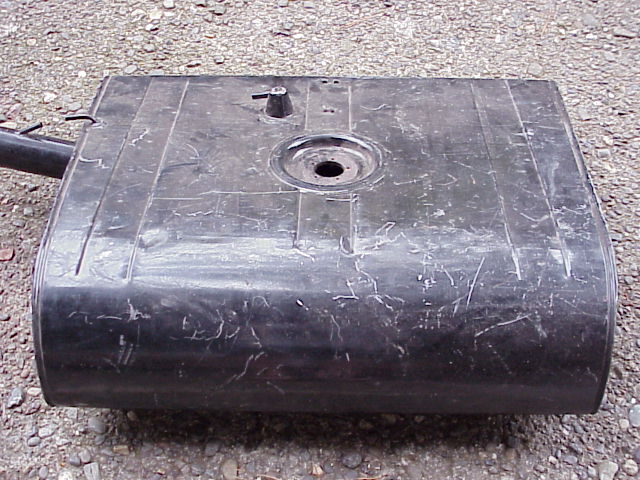

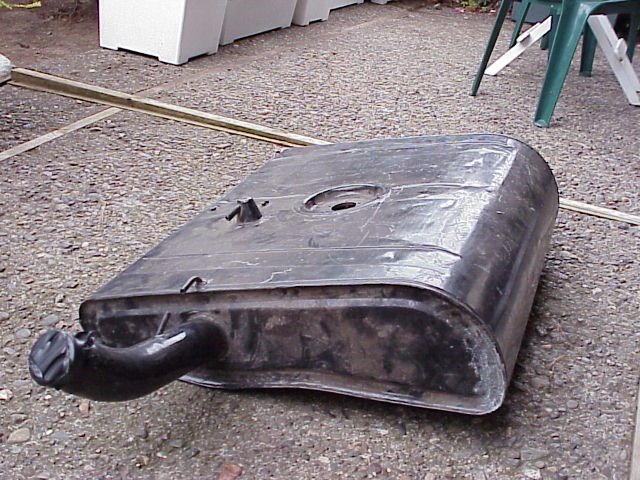

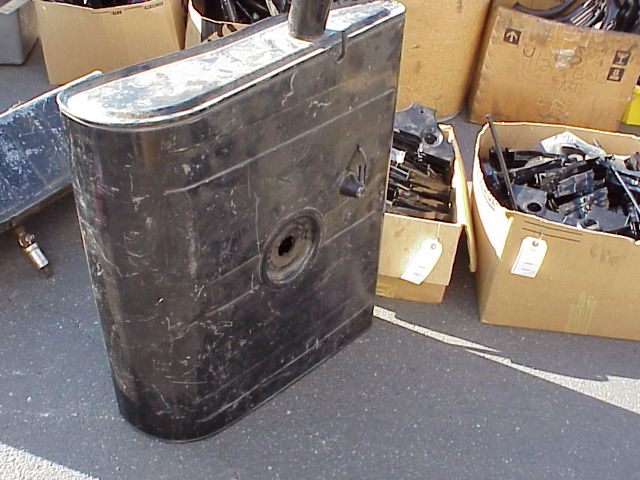

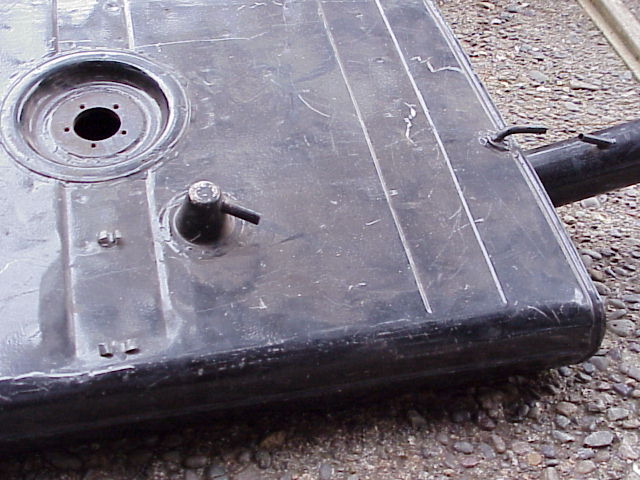

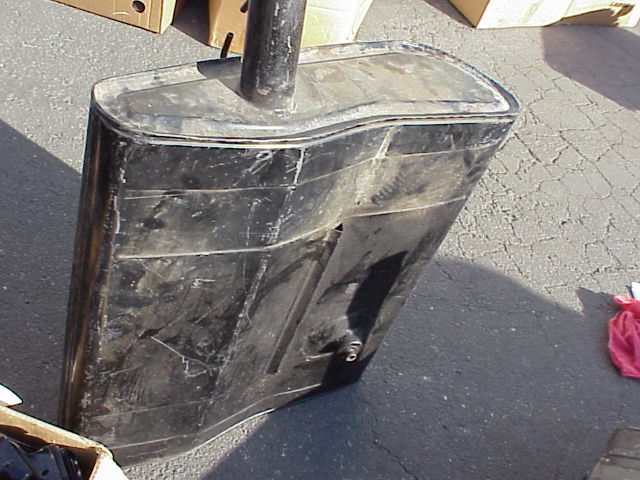

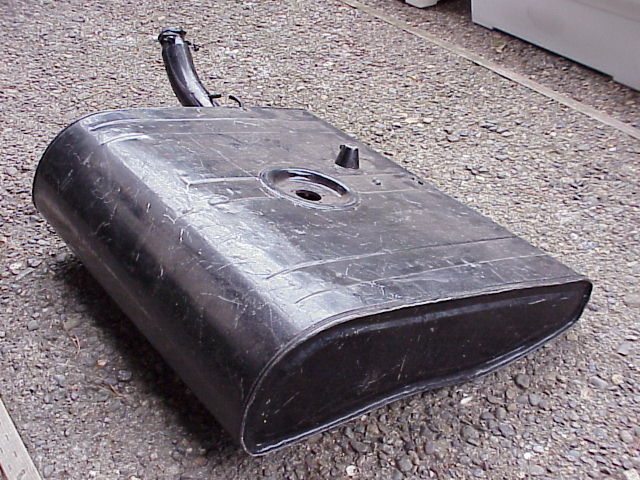

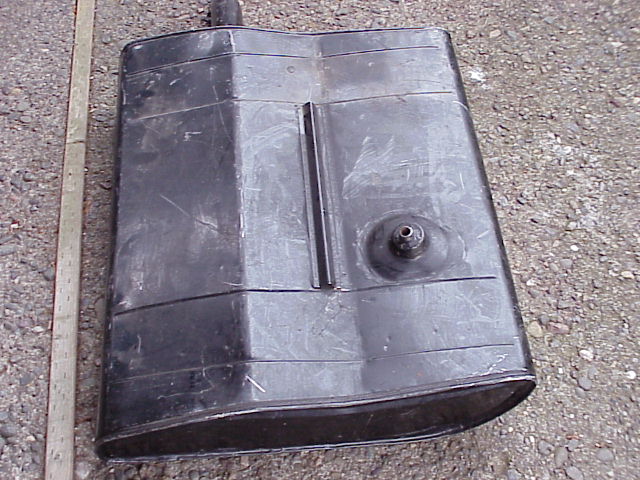

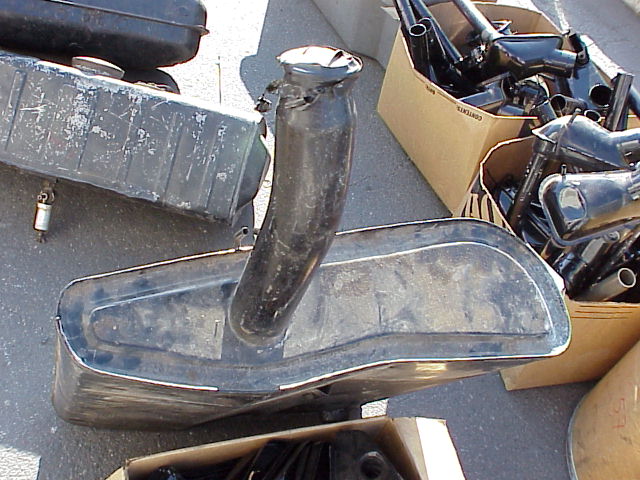

RHD Fuel Tank
(Photos from Mark Merz)
